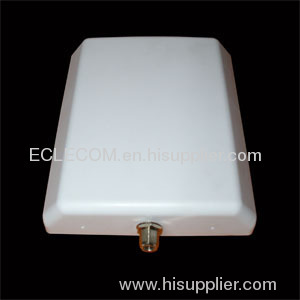

698-2700MHz 8dBi Indoor Panel Antenna
| Place of Origin: | , China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Application:
Indoor/in-building Coverage
CDMA,GSM, DCS, 3G/UMTS Application
WLAN Communication Application
WiFi /Wimax System
Features
Model | DP727G08 | |
Frequency | 698-894MHz, 1710-2700MHz | |
Polarization | Vertical, Linear | |
Horizontal Beam Width | 83 deg | |
Vertical Beam Width | 50 deg | |
Gain | 8 dBi | |
VSWR | <1.5: 1(Max<2) | |
F/B | >20dB | |
Max Power | 50 W | |
Impedance | 50 Ω | |
Mechanical Specification | ||
Radome Material | ABS with UV Protection | |
Lightning Protection | Direct Ground | |
Connector | N-female | |
| 0.6 kg | |
Size | 207x177x45mm | |
Operating Temperature Range | -40 to +70 Degrees | |
Storage Temperature | -50 to +75 Degrees | |
